| Rated Power (kW) | 6.5 / 8.5 / 11 / 13 / 15 / 18 / 20 / 22 / 26 |
|---|---|
| Voltage | 230V~ / 400V 3~ |
| Working Temp. Range | 30-80°C (in radiator mode) |
| Temp. Difference Setting Range | 5-30°C |
| Inlet & Outlet Connection | G3/4” |
| Filling Water Inlet | G1/2” |
| Product Size | 700×410×240mm |

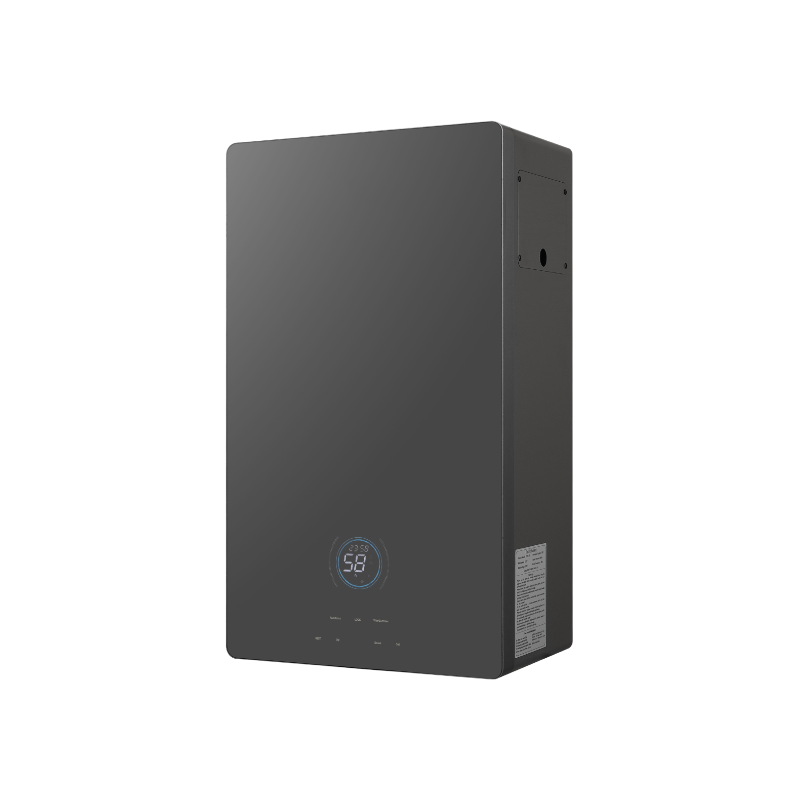

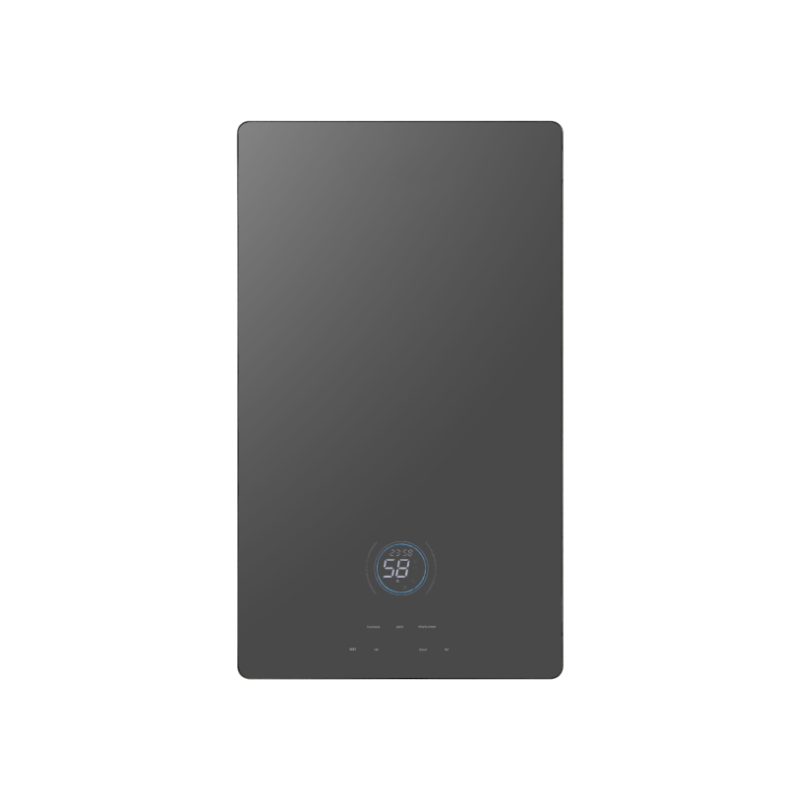

Our Combi Electric Boiler delivers efficient central heating and instant hot water from a single compact unit.

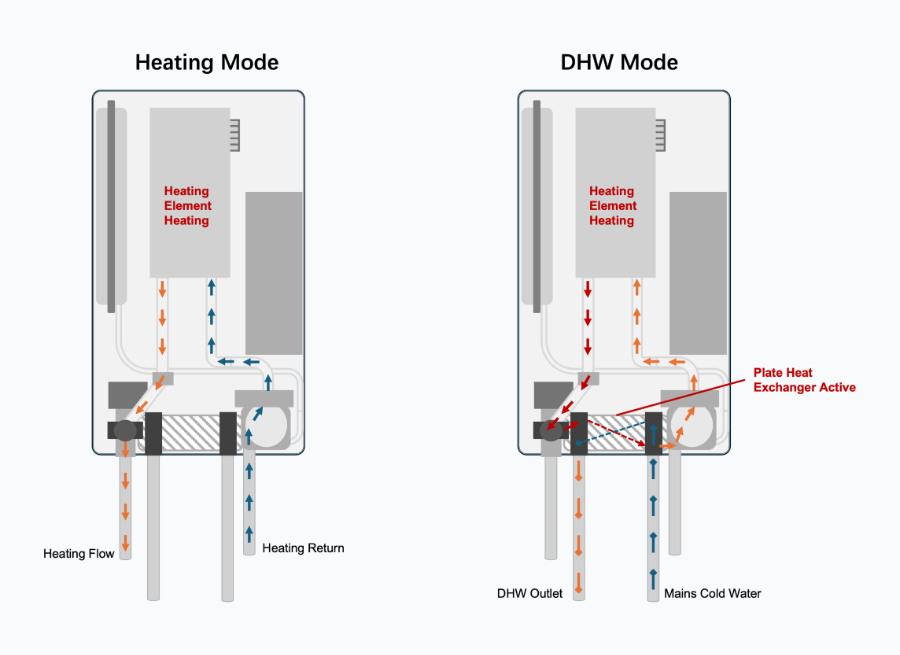

How DHW Mode Works:
Intelligent Diverting: When hot water is needed, the built-in 3-way valve instantly shifts primary hot water into the plate heat exchanger.
Rapid Heat Transfer: Incoming cold mains water absorbs energy via high-efficiency counter-flow transfer to produce instant hot water.
Compact Efficiency: Eliminates external hot water storage tanks, saving installation space and reducing standby energy loss.
Equipped with a high-performance expansion vessel and premium circulation pump to ensure optimal system pressure stability and reliable water circulation.
